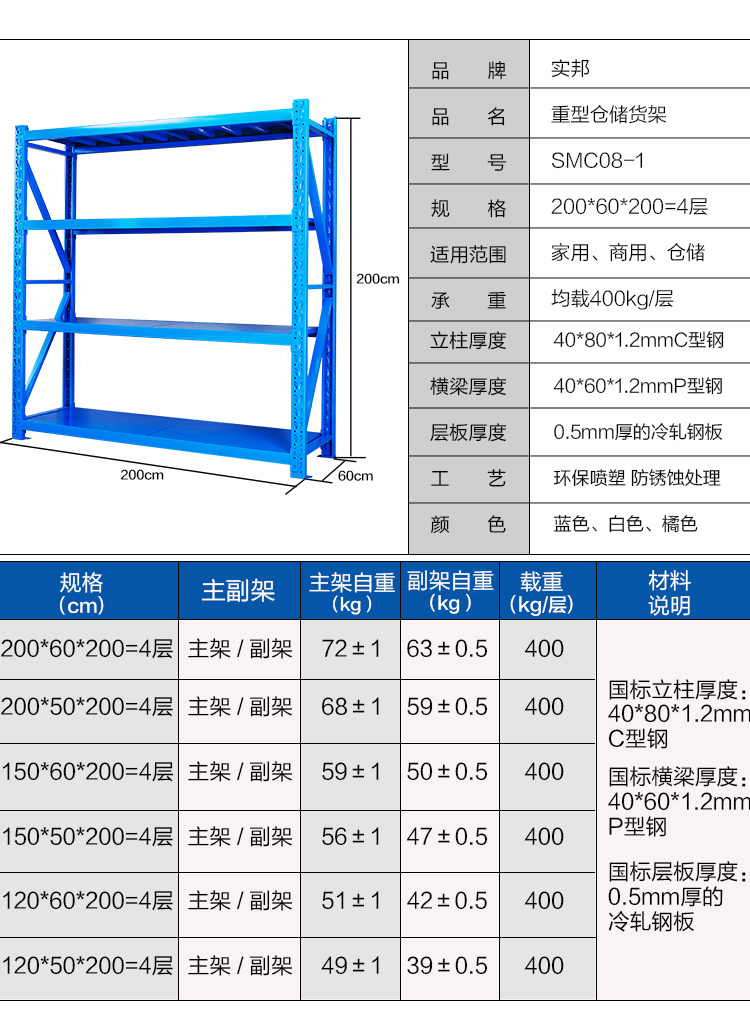

| Size (cm) | Body-frame weight (kg) | Sub-frame weight (kg) | Loading capacity (kg) |
|---|---|---|---|
| 200*60*200 = 4 layers | 72 ± 1 | 63 ± 0.5 | 400kg/layer |
| 200*50*200 = 4 layers | 68 ± 1 | 59 ± 0.5 | 400kg/layer |
| 150*60*200 = 4 layers | 59 ± 1 | 50 ± 0.5 | 400kg/layer |
| 150*50*200 = 4 layers | 56 ± 1 | 47 ± 0.5 | 400kg/layer |
| 120*60*200 = 4 layers | 51 ± 1 | 42 ± 0.5 | 400kg/layer |
| 120*50*200 = 4 layers | 49 ± 1 | 39 ± 0.5 | 400kg/layer |

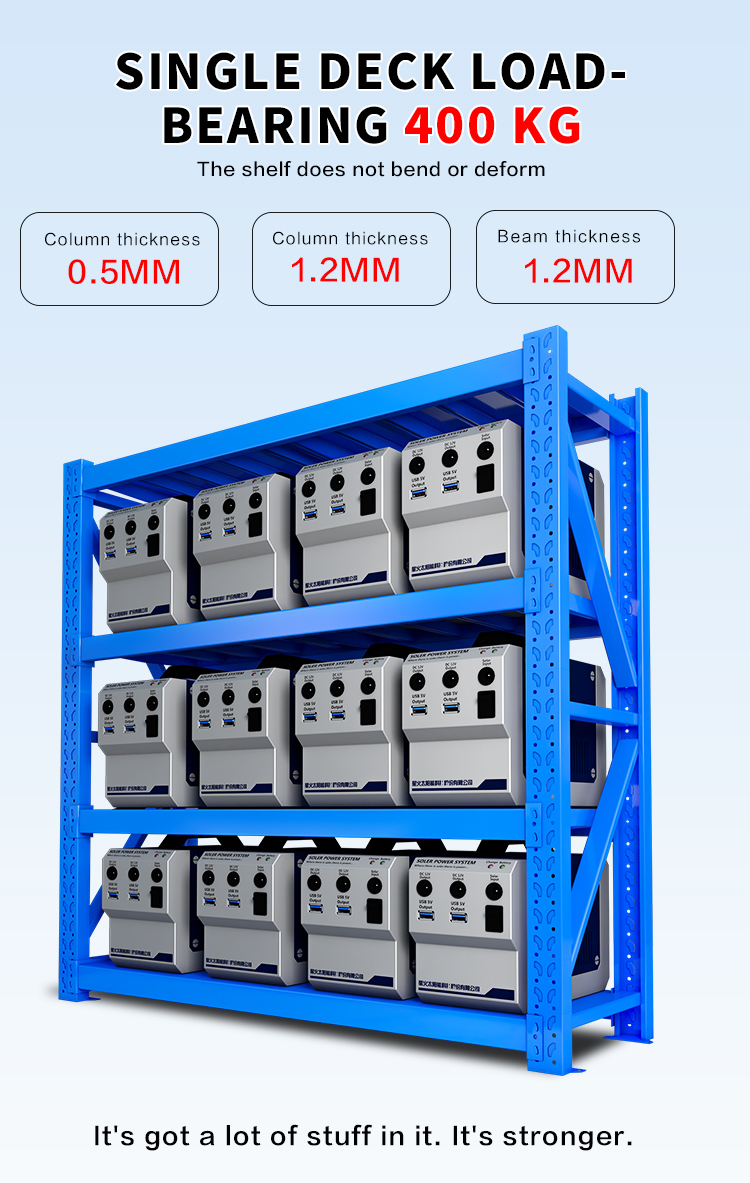

• National standard upright thickness: 40*80*1.2mm C steel
• National standard beam thickness: 40*60*1.2mm P steel

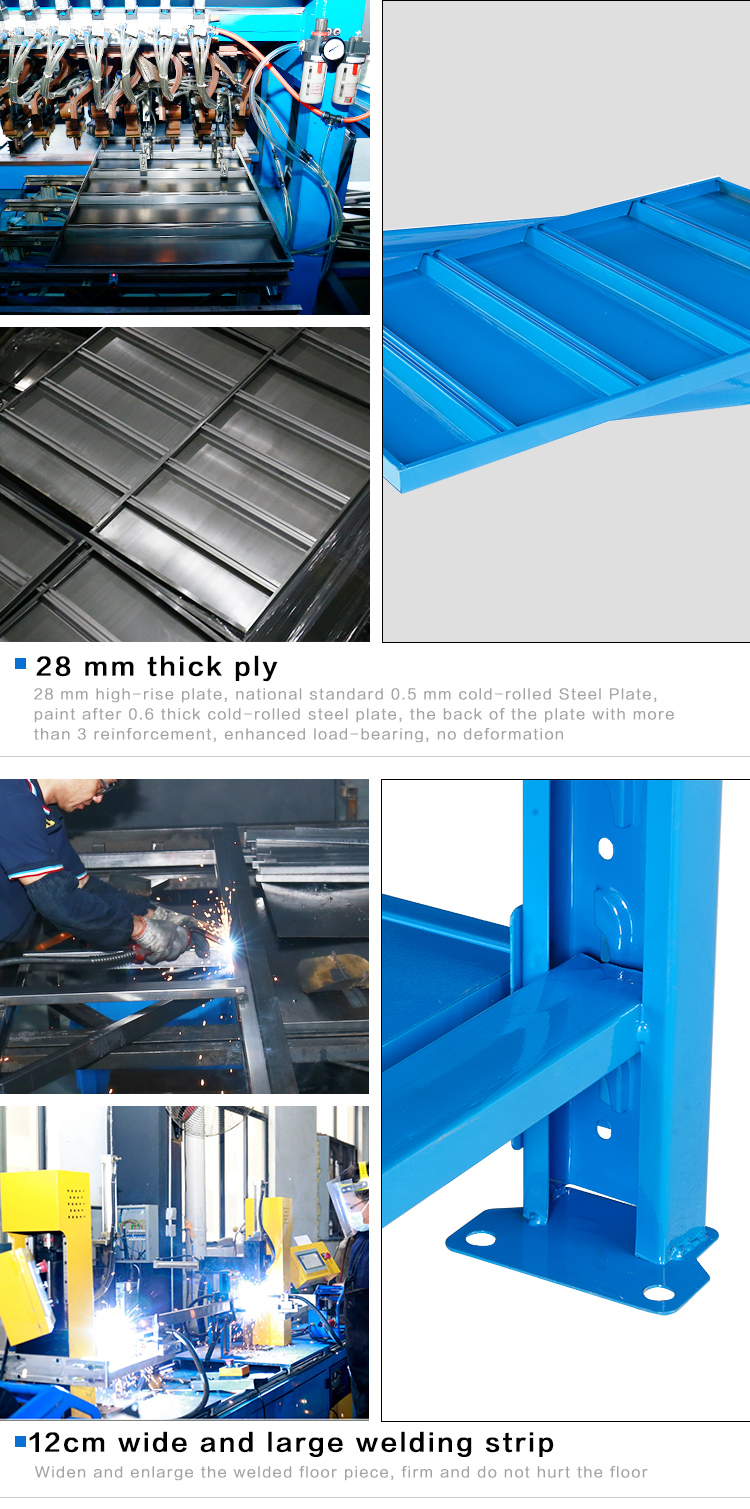

• National standard shelf thickness: 0.5mm thick cold rolled steel sheet
| Item | Value |
|---|---|
| Layer | 4, 1 Layer, 2 layer, 3 layer, 5 Layer |
| Material | Steel |
| Type | Multi-Level |
| Feature | Adjustable, Heavy Duty |
| Installation | Freestanding |
| Surface Treatment | Electrostatic powder coating |
| Length of layers | 200cm |

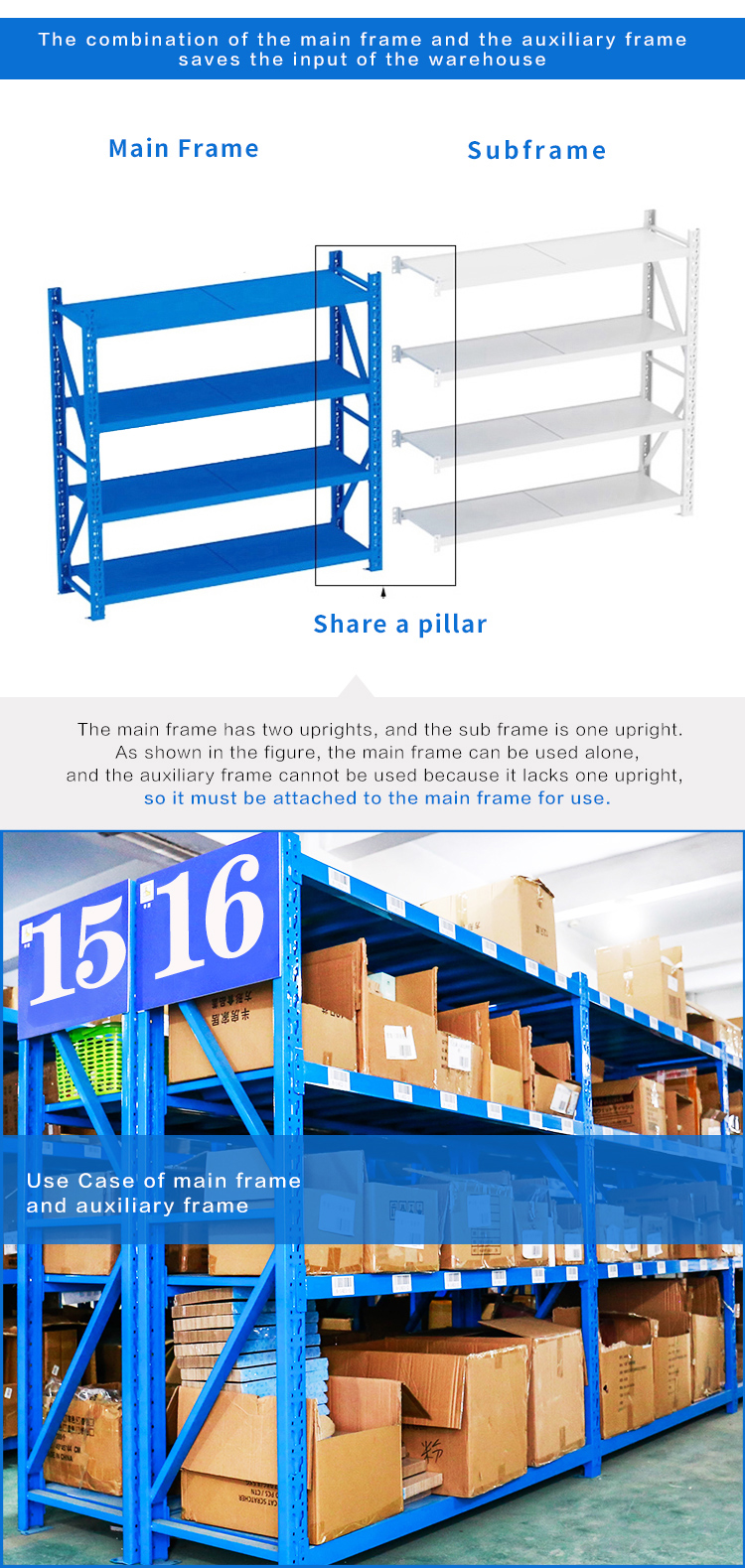

| Main sub rack form | main sub |
| Main sub structure | main frame |
| Rack accessories | Pallet support bar, screw bracket, Shell and Tube |
| Usage | Warehouse Storage System |
| Color | Blue |
| Application | Goods Storage |
| Packing | Customers' Request |
| Function | Large Load Capacity Warehouse Storage |
| Certification | CE/ISO9001 |
| OEM & ODM | Acceptable |
| Advantages | 17 Years Experience |
