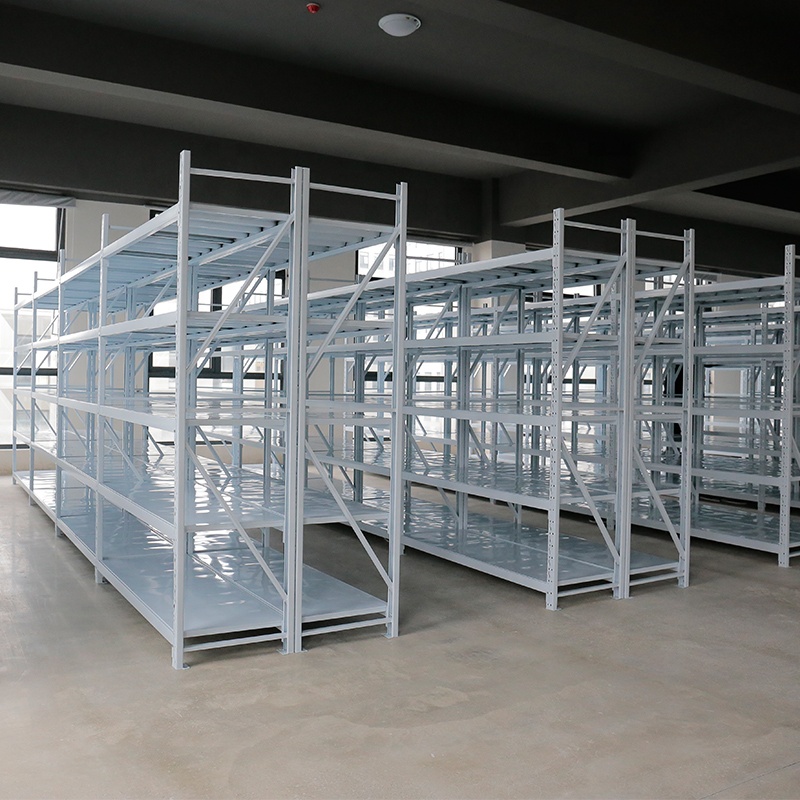

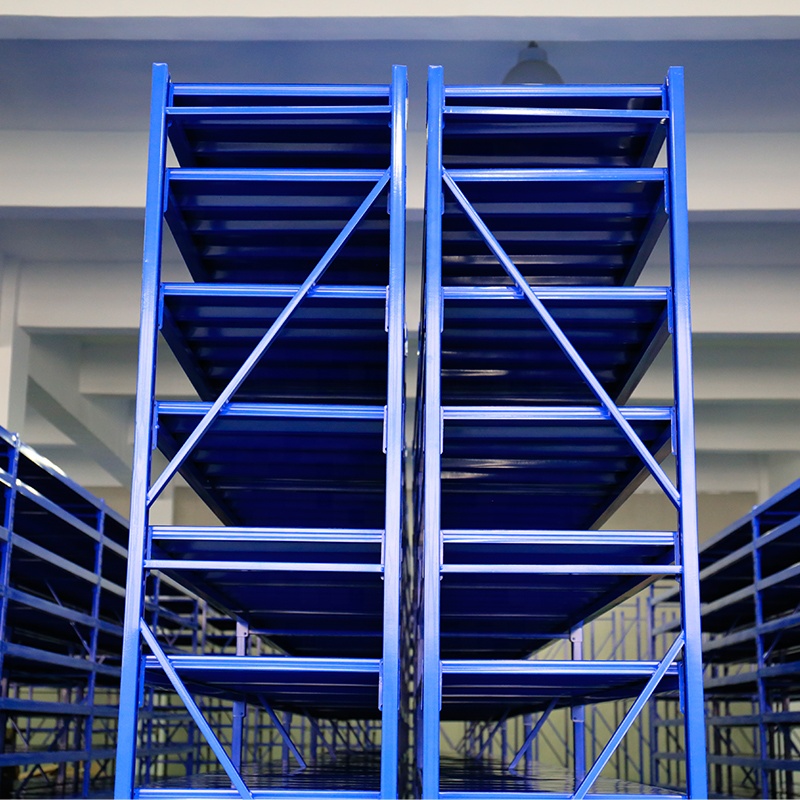

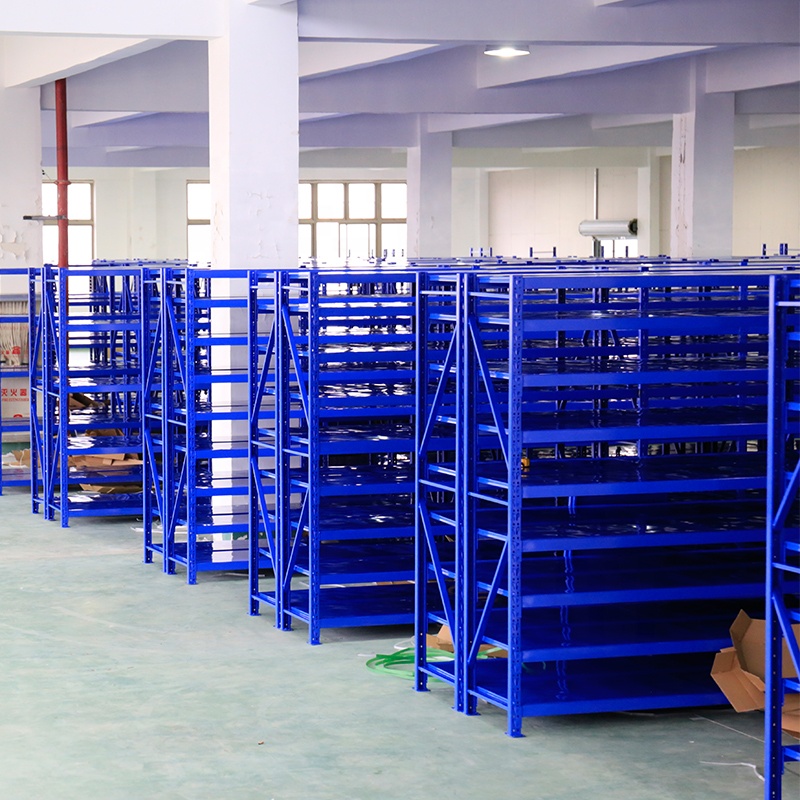

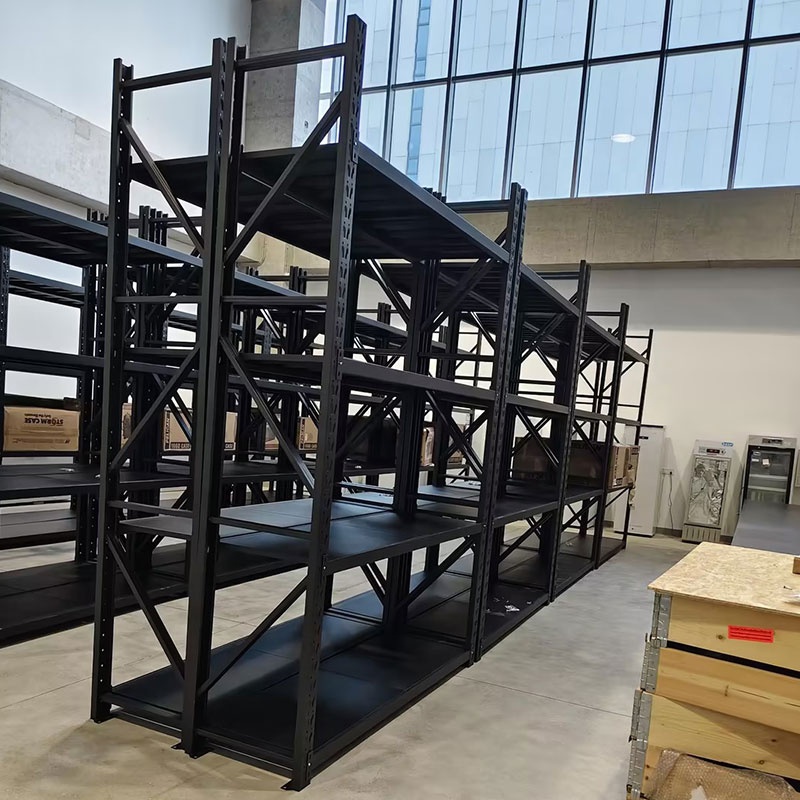

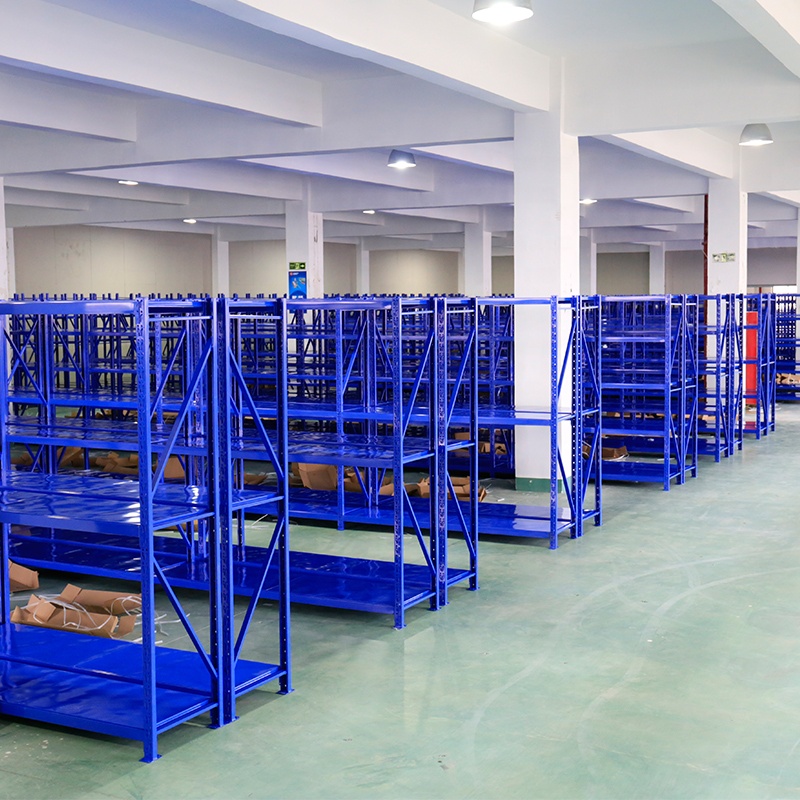

Product Name: Heavy Duty Racking
Size: 200*60*200 = 4 layers (or customized)
Suitable for: Warehouse Racks, Household, Commercial Storage
Loading Capacity: 400kg / layer
Upright Thickness: 40*80*1.2mm C steel
Beam Thickness: 40*60*1.2mm P steel
Shelf Thickness: 0.5mm thick cold rolled steel sheet
Features: Environmental protection spray, Corrosion Protection
Available Colors: Blue, White, Orange
| Size (cm) | Body-frame Weight (kg) | Sub-frame Weight (kg) | Loading Capacity (kg) |
|---|---|---|---|
| 200*60*200 = 4 layers | 72 ± 1 | 63 ± 0.5 | 400kg / layer |
| 200*50*200 = 4 layers | 68 ± 1 | 59 ± 0.5 | 400kg / layer |
| 150*60*200 = 4 layers | 59 ± 1 | 50 ± 0.5 | 400kg / layer |
| 150*50*200 = 4 layers | 56 ± 1 | 47 ± 0.5 | 400kg / layer |
| 120*60*200 = 4 layers | 51 ± 1 | 42 ± 0.5 | 400kg / layer |
| 120*50*200 = 4 layers | 49 ± 1 | 39 ± 0.5 | 400kg / layer |
• National standard upright thickness: 40*80*1.2mm C steel
• National standard beam thickness: 40*60*1.2mm P steel
• National standard shelf thickness: 0.5mm thick cold rolled steel sheet
| Item | Value |
|---|---|
| Layer | 4, 1 Layer, 2 layer, 3 layer, 5 Layer |
| Material | Steel |
| Type | Multi-Level |
| Feature | Adjustable, Heavy Duty |
| Installation | Freestanding |
| Surface Treatment | Electrostatic powder coating |
| Length of Layers | 200cm |
| Main Sub Rack Form | Main Sub |
| Main Sub Structure | Main Frame |
| Rack Accessories | Pallet support bar, screw bracket, Shell and Tube |
| Usage | Warehouse Storage System |
| Color | Blue |
| Application | Goods Storage |
| Packing | Customers' Request |
| Function | Large Load Capacity Warehouse Storage |
| Certification | CE / ISO9001 |
| OEM & ODM | Acceptable |
| Advantages | 17 Years Experience |
