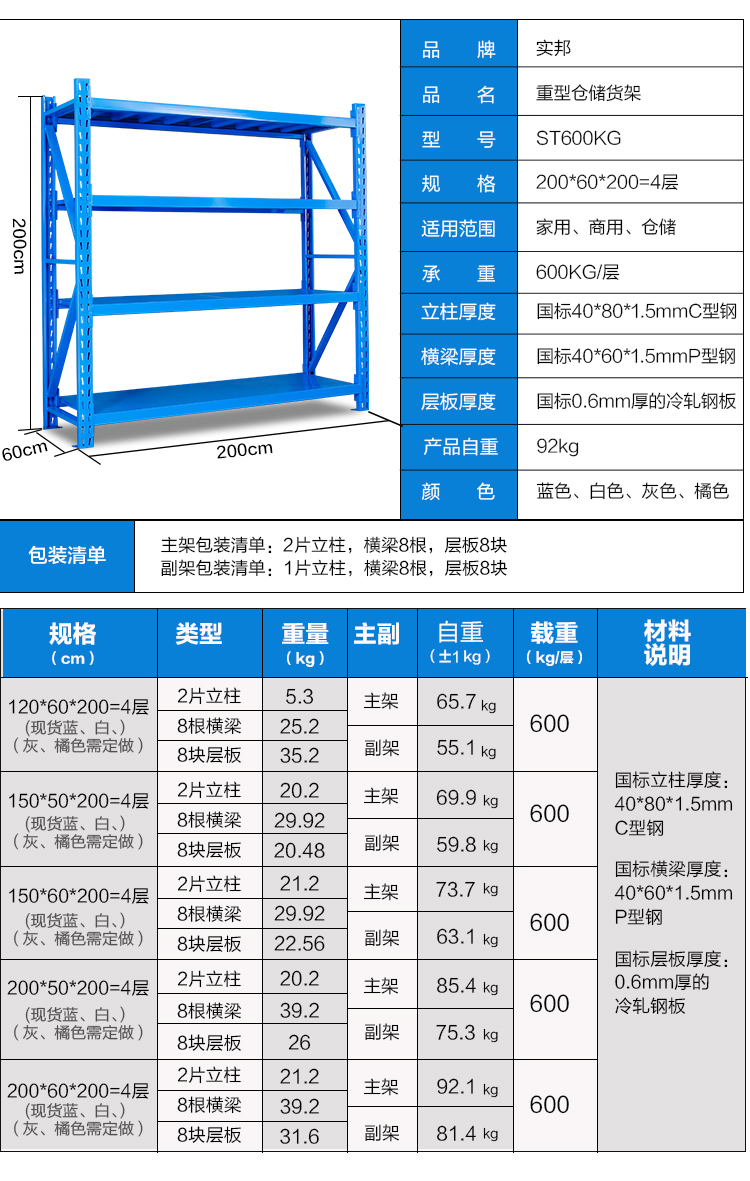

| Packing List | Details |
|---|---|

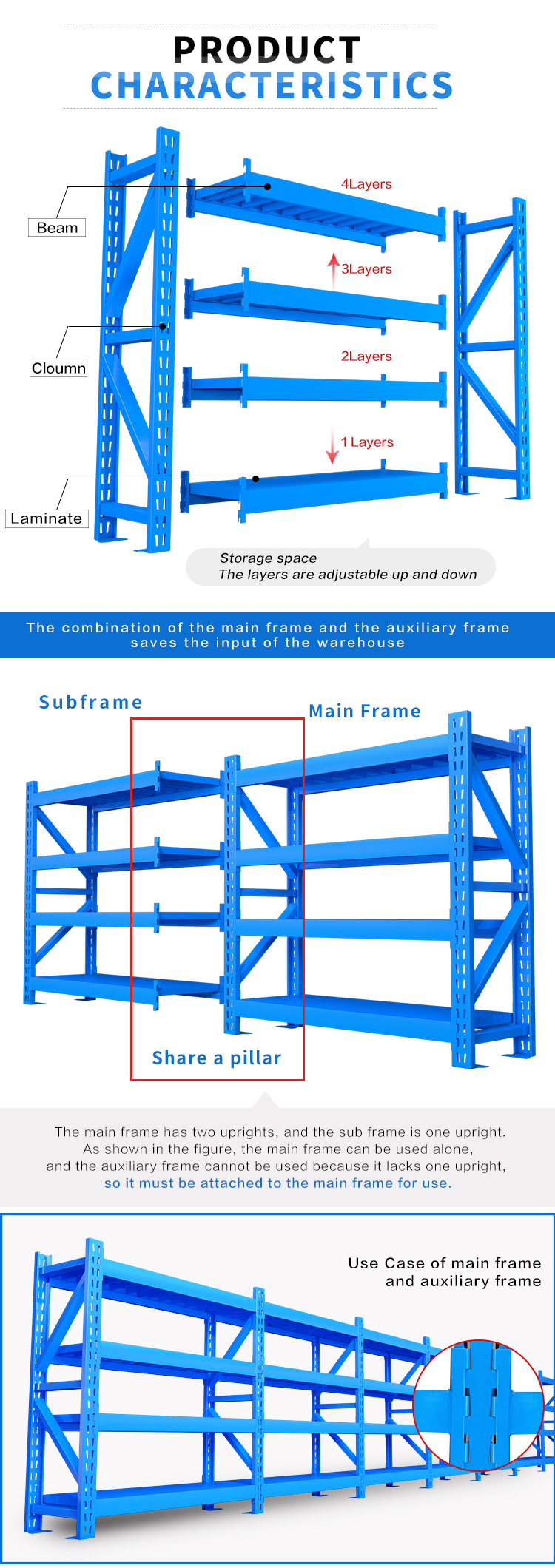

| Body frame packing list | 2 Uprights + 8 Beams + 8 Shelves |
| Sub frame packing list | 1 Upright + 8 Beams + 8 Shelves |
| Size (cm) | Style | Weight (kg) | Body-frame / Sub-frame | Dead-weight (±1kg) | Loading Capacity (kg/layer) |
|---|---|---|---|---|---|
| 120*60*200 = 4 layers (Spot: blue, white. Gray, orange need customization) |

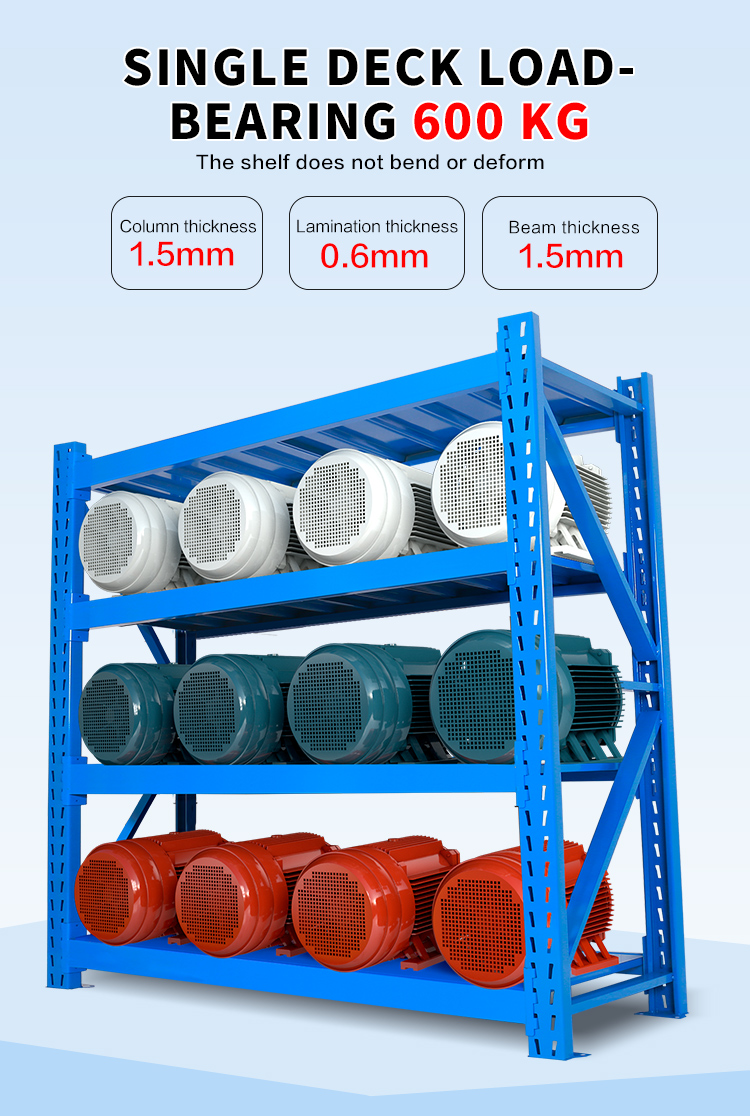

2 Uprights | 5.3 | Body-frame | 65.7 | 600 |
| 8 Beams | 25.2 | Sub-frame | 55.1 | ||
| 8 Shelves | 35.2 | - | - | ||
| 150*50*200 = 4 layers (Spot: blue, white. Gray, orange need customization) |
2 Uprights | 20.2 | Body-frame | 69.9 | 600 |
| 8 Beams | 29.92 | Sub-frame | 59.8 | ||
| 8 Shelves | 20.48 | - | - | ||
| 150*60*200 = 4 layers (Spot: blue, white. Gray, orange need customization) |
2 Uprights | 21.2 | Body-frame | 73.7 | 600 |
| 8 Beams | 29.92 | Sub-frame | 63.1 | ||
| 8 Shelves | 22.56 | - | - | ||
| 200*50*200 = 4 layers (Spot: blue, white. Gray, orange need customization) |
2 Uprights | 20.2 | Body-frame | 85.4 | 600 |
| 8 Beams | 39.2 | Sub-frame | 75.3 | ||
| 8 Shelves | 26 | - | - | ||
| 200*60*200 = 4 layers (Spot: blue, white. Gray, orange need customization) |
2 Uprights | 21.2 | Body-frame | 92.1 | 600 |
| 8 Beams | 39.2 | Sub-frame | 81.4 | ||
| 8 Shelves | 31.6 | - | - |
| Material Description | Detailed Standards |
|---|---|
| Upright Thickness | National standard upright thickness: 40*80*1.5mm C steel |
| Beam Thickness | National standard beam thickness: 40*60*1.5mm P steel |
| Shelf Thickness | National standard shelf thickness: 0.6mm thick cold rolled steel sheet |
